LED tubes

The LED tube is the basic building block of the Hexagon system: one tube = one side of the pattern. Every tube is replaceable, so a layout can be extended or repaired one part at a time.

Lengths and outputs

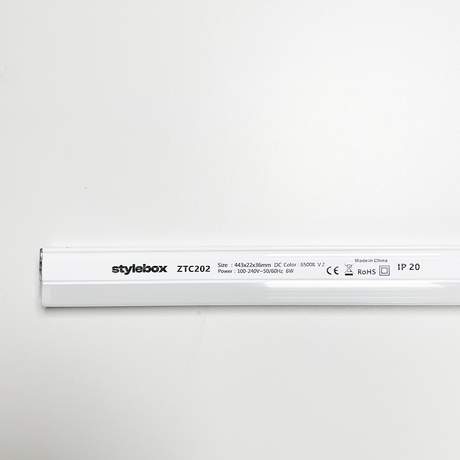

• 44 cm – 6 W – standard tube, non-dimmable and step-dimmable

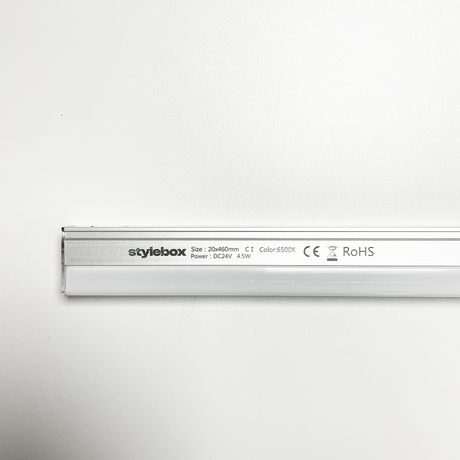

• 46 cm – 5,2 W – stepless 0–100 % dimming
• 46 cm RGB – 1,8 W – colour light, remote controlled
• 1178 mm – 16 W – long tube, non-dimmable and step-dimmable

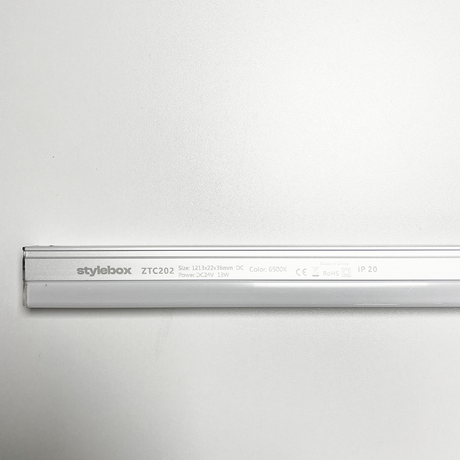

• 1213 mm – 16 W – long tube, stepless 0–100 %

Before you order

Tube length sets the scale of the pattern: a hexagon built from 44 cm tubes is about 88 cm across, one built from 1178 mm tubes about 2,4 m. The dimming type cannot be changed afterwards – decide that first. Stepless models always require a driver.

50,000-hour lifespan · 24-month warranty.

Work out how many tubes your pattern needs
